Exported to Switzerland, Hongkong, USA, Saudi Arabia, UAE, China, Russia, Norway, Belgium, Japan, South Korea, Kuwait, France & other countries Electrical Control Panel Manufacturers & Industrial Automation Controls Producers as OEM High Voltage Carpet Rubber Insulation Sheet product importers.
Dielectric Voltage Class 0,1,2,3,4, HV, MV, 5KV~40KV Test Proof Mat
Leading manufacturing solutions of Dielectric Safety NEW Insulating Mats, high voltage protection:
- HT, LT Control Panel-Boards Sparks Resistant, HIGH VOLTAGE MAT Rated as laid in IS 15652
- Power Substation, DI-ELECTRIC CARPET Rated as laid in IEC 61111
- Class 0: 2.5 mm Thick, 5KV Proof voltage safe
- Class 1: 3 mm Thick, 10KV Proof
- Class 2: 4 mm Thick, 20KV Proof
- Class 3: 4 mm Thick, 30KV Proof
- Class 4: 6 mm Thick, 40KV Proof
- Switchgear, Fuse Boxes, NON-CONDUCTIVE MAT Rated as laid in ASTM D-178, ANSI JS.7
- Class 1: 4.5 mm Thick, 10KV Proof voltage safe
- Class 2: 6 mm Thick, 20KV Proof
- Class 3: 9 mm Thick, 30KV Proof
- Class 4: 12 mm Thick, 40KV Proof
- Electricity Generation, AC CURRENT RESISTANT CHEQUERED MATS Safety Rating as laid in IS 5424, 6 mm (0.4 KV Working); 8 mm (1KV work); 10 mm (7.5 KV work) ~ 25 mm Thick; 15KV voltage safety Proof
- WIDTHS & LENGTHS: 1m, 1.2m: W and L: 2m, 5m, 10m, 20m, 25meters
- COLOR: BLACK (standard), GREY, BLUE, RED
- Anti-Slip FINISH: Textured (standard), Fine Ribbed, Chequered
| Class A | 2 mm Thick, 10KV Proof voltage safe |
|---|---|
| Class B | 2.5 mm Thick, 22KV Proof |
| Class C | 3 mm Thick, 36KV Proof |
| Delivery Lead Time | Generally, within 4-6 weeks |
| Production Capacity | 18,000 nos. per annum |
Power Plant, Substation Non-Conductive Electrical Matting Solutions
Ensure worker safety with electrical anti-fatigue rubber floor insulating matting in:

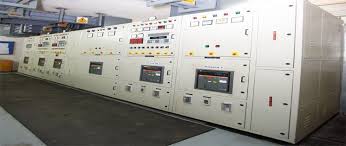

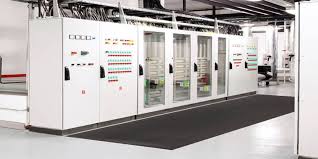

- HT and LT control rooms, transformer bays to resist impact, tears or punctures when protecting workers at Power plant high voltage switch room in front of energized switchboards.
- Substation switchboard and switchgear where workers conduct routine maintenance, repair and installation of electrical equipment located in High voltage switchboards above 45 kV HV, Medium voltage above 1000 V to 45 kV MV, Low voltage up to 1000V LV to isolate operators from the ground, thus protecting them from shock.
- Lab Test Passed, nonconductive floor mats solutions.
TC: Insulating Mat/ Tapis isolant/ Schaltanlagen-Matte
TEST CERTIFICATE of Insulating Mat/ Tapis isolant/ Schaltanlagen-Matte, TC while supplies w.r.t Di-electric, AC Proof Voltage, etc. Test Passed as per IEC 61111, ASTM D-178, IS 15652, IS 5424.
- Insulating Mat
- Tapis isolant
- Schaltanlagen-Matte
