True Performance Flexible Hydraulic Hose, Camlock Quick Fittings

HIC International Co, India manufactures Pressure-Safe Fluid Transfer Hydraulic Hose & Fittings:

Catalogue DL

Listen to a short brief

Flexible Hoses

Kink-Less High-Pressure Quality Rubber lining & cover compound, Nylon Braiding, Woven Textile Ply, Reinforced Steel Wire for refinery steam, food grade dairy, furnace coolant, fire foam, air, rock drill, welding, water delivery, sand blasting, water jetting, high pressure hydraulic earthmoving hose.

Test Passed as per IS10655, BS5122, IS5118, IS446, IS447, IS444, IS5894, ISO19385, SAE100.

Suction and Discharge Hose Pipe

Double Armored Flexi Rubber Quality Bare Length & Custom size with Loose or Built-in Flange Class ASA150/BS10 MS fittings for slurry material handling, mud water, fly ash discharge, chemical unloading, petroleum transfer oil suction, heavy-duty mines dewatering hosepipe.

Test Passed as per IS3549, IS7654, IS10733.

Camlock Quick Coupling

Positive High-Pressure Liquid Transfer Quality stainless steel SS316, SS304, Carbon Steel WCB, Aluminum Fast Fitting Connector Types A to F Coupler Adapter with Nitrile/ Viton rubber Seal Leakproof material, Male & Female cam groove fittings.

Test Passed as per MIL-C-27487.

Produced & Exported under the brand name “HIC Universal”, an ISO 9001 certified Manufacturing company.

CREDENTIALS as to quality industries supplies & true performance, Click Menu Tab.

Two armoured suction hoses run over the side of a working barge into the water alongside.

TC, COC of HYDRAULIC HOSE, CAMLOCK TESTING

Test Certificate and Material COC of Manufacturer, HIC make hydraulic rubber hose, camlock coupler adapter, quick coupling products in-house Lab forwarded along-with the supplies.

Also, on EXTRA cost, from an independently accredited India Test Facility, like DNV, RITES, SGS, PDIL, National Test House or any Govt. approved laboratory or other Third-Party Inspection agencies.

The water and dust penetration test apparatus in the works, a sealed test chamber with its instruments mounted above.

CUSTOMERS of HIC RUBBER HOSE, CAMLOCK COUPLING

HIC’s rubber hose pipe and hydraulic camlock coupling are trusted by OEMs in ASIA of:

  • Industrial Water Pump manufacturers,
  • Crude Oil Tanker Ship producers,
  • Fly ash Cement Bulker Trailer rental services companies,
  • Fire fighting Vehicle makers,
  • Slurry Discharge Pump repair services,
  • Construction Equipment Hydraulic Machinery fitters,
  • Car Washing workshops,
  • Industrial Sewer Jetting Machine suppliers,
  • Milk and Dairy Industry Steam Boilers consultants,
  • Paper Machines Hot Water Eqpt. and Importers in Brazil, Peru, Argentina, Chile, Uruguay, Ghana, Zambia, Nigeria, Egypt, Libya, Guinea, Mauritius, South Africa, Congo, Tanzania, Netherlands, Germany, Australia, NZ, UAE, Russia, Singapore, UK
  • Direct Manufacturing Industries like metal ore mining industries, dockyards, cement factories, coal washery, sand mining industry, sugar producers, glass products factory, aluminum producing company customers.

Section 01 of 5

PRODUCTION CAPABILITY Of SUCTION and DISCHARGE HOSE TYPES

Production range of HIC UNIVERSAL Rubber Suction and Discharge Hose with or Without MS Flanges or Soft Ends manufacturing capability types consist of:

3 products

Browse the range

Section 02 of 5

RIGID MANDREL FLEXIBLE RUBBER HOSE TYPES COMPETENCE

Manufacturing competence of consistent dimensions HIC UNIVERSAL Rigid Mandrel Built Flexible Transfer Suction and Discharge Rubber Hose Without Soft Ends Large Diameter Bore Sizes up to 200mm NB.

7 products

Browse the range

Section 03 of 5

BRAIDED DELIVERY HOSE PIPE TYPES MAKING PROFICIENCY

Making proficiency of continuous long length HIC UNIVERSAL Braided Rubber Hose Pipe produced with Wire Braiding up to 38mm Diam., in Dipped Yarn Braids/ Woven Textile Ply up to 100mm Inner Dia.

4 products

Browse the range

Section 04 of 5

HYDRAULIC WIRE REINFORCED HOSE ASSEMBLY PRODUCTION RANGE

Production range of High-Pressure Oil Resistant flexible HIC UNIVERSAL Hydraulic Hose of High Tensile Brass Coated Steel Wire Reinforced up to 50mm NB, Assembly crimped fittings.

2 products

Browse the range

Section 05 of 5

CAMLOCK COUPLING TYPES MANUFACTURING CAPACITY

Camlock Coupling Fitting Types are produced of Steel SS304, SS316, Carbon Steel WCB, Aluminum high pressure hose fittings as per MIL-C-27487 standards.

2 products

Browse the range

Why HIC Universal Hydraulic Rubber Hoses?

  • Burst-Safe 15 Bar Armored Large Dia. Suction and Discharge
  • Kink-less Flexible Yarn Braided up to 20 Bar Pressure Delivery
  • High Pressure HTS Wire Braided up to 1,250 Bar

Section 01

PRODUCTION CAPABILITY Of SUCTION and DISCHARGE HOSE TYPES

Production range of HIC UNIVERSAL Rubber Suction and Discharge Hose with or Without MS Flanges or Soft Ends manufacturing capability types consist of:

Custom Built Large Bore Sizes up to 350mm ID Corrugated Suction Rubber Hoses, Rigid Mandrel Built Large Diameter Sizes up to 200mm NB Flexible Transfer Rubber Hose pipe.

A length of mud water suction hose, the helical wire reinforcement standing proud of its cover.
An armoured water suction and discharge hose with a smooth cuff at the end for clamping.

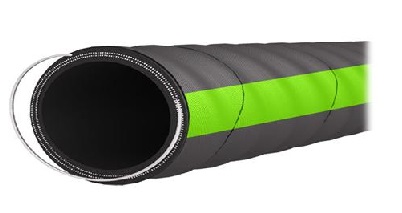

A mine water suction and delivery hose, a green stripe along its ribbed cover and a soft cuff at the end.

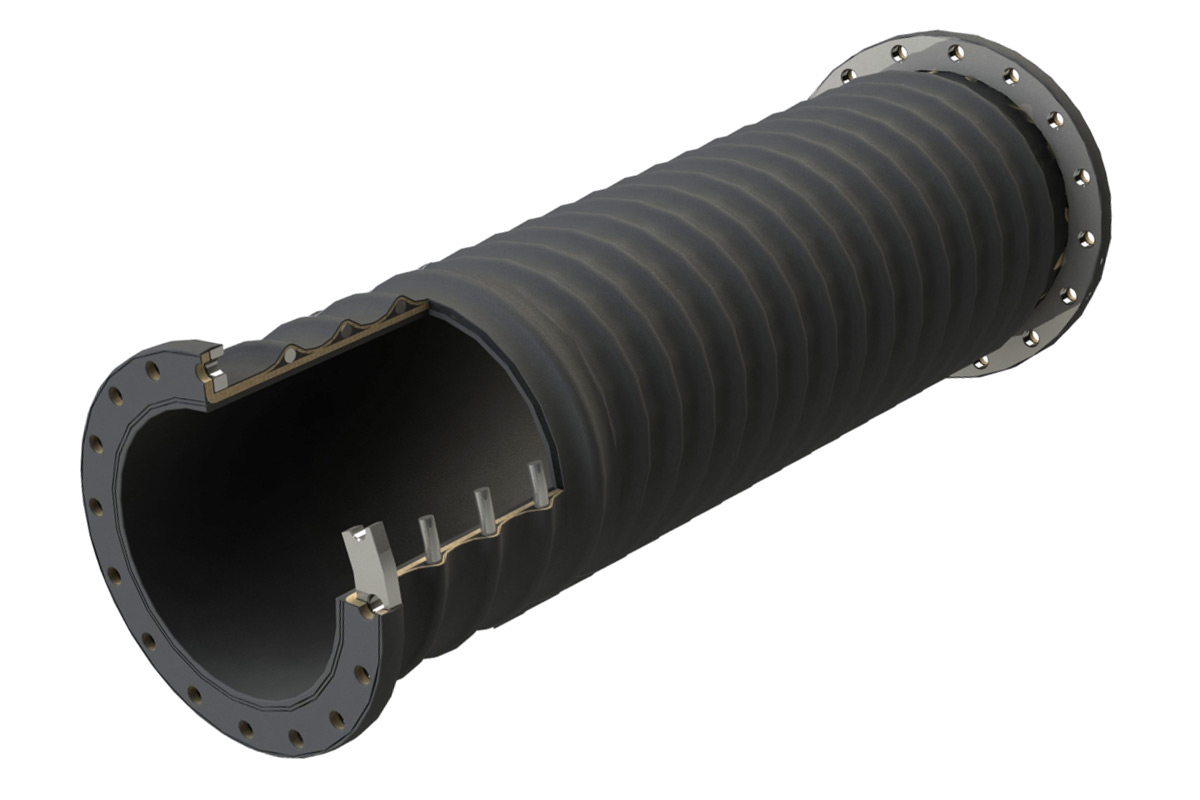

A slurry suction hose built with a bolted flange at the end and a thick lining visible through the bore.
3 products

SLURRY DISCHARGE, MUD WATER SUCTION HOSE CUSTOM BUILT

Slurry Feed Pump Abrasive Discharge in 10,15bar Working Pressure of NR, SBR rubber blend Reinforced Steel Wire Helix Suct Discharge Type, Large Bore Custom Hand-Made as per HIC’s own standards:

Specification11 lines
  • Custom built Sizes: 50 to 350mm ID ~14inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 20M (standard) or also 10,15M; (min. Coil): 5M
  • Cover: Corrugated wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +70deg.C
  • Hose End Fittings: Flange connections Built-in/ Loose or with Soft Ends enlarged
  • Mud Water Waste Discharge in 7,10,15bar Working Pressure of NR, SBR rubber blend Reinforced with Steel Wire Helix Suct Discharge Type, as per IS3549 standards:
  • Custom built Sizes: 50 to 350mm ID ~14inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 20M (standard) or also 10,15M; (min. Coil): 5M
  • Cover: Corrugated wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +70deg.C; Vacuum: 750mm Hg
  • Hose End Fittings: Flanged connections Built-in/ Loose or with Soft Ends enlarged
A drilling mud hose with a steel flange fitted at the end.

FLY ASH TRANSFER, TANKER DECANTATION HOSE PIPE CUSTOM BUILT

Fly Ash Cement Silos Transfer in 10,15bar Working Pressure of NR, SBR rubber blend Reinforced with Steel Wire Helix Suct Discharge Type, Large Bore Custom Hand-Made as per HIC’s own standards:

Specification11 lines
  • Custom built Sizes: 75 to 200mm ID ~8inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 20M (standard) or also 10,15M; (min. Coil): 5M
  • Cover: Corrugated wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +70deg.C
  • Hose End Connections: Flange fittings Built-in/ Loose or with Soft Ends enlarged
  • Petroleum Tanker Decantation in 07, 10bar Working Pressure of NBR rubber blend Reinforced with Copper Wire for Electrical Continuity & Steel Wire Helix Suct Discharge Type, as per EN 13765 TYPE 1, IS10733 standards:
  • Custom built Sizes: 50 to 125mm ID ~5inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 20M (standard) or also 10,15M; (min. Coil): 5M
  • Cover: Corrugated wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +80deg.C
  • Hose pipe Fittings: Camlock/Flange fittings Built-in/Loose or Soft Ends enlarged

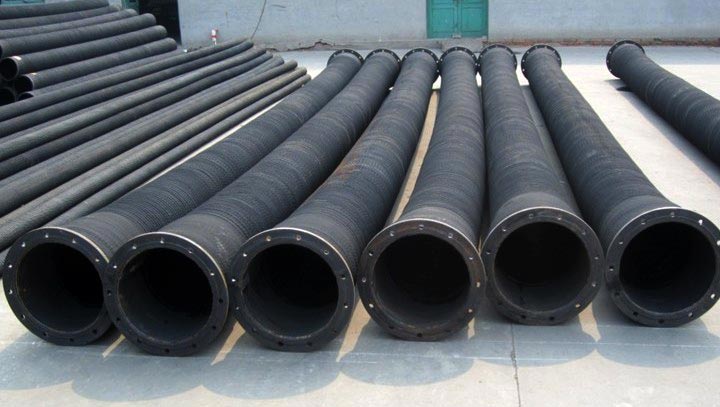

Finished fly ash bulker hoses laid in rows on the works floor, each with a flange at the end.

AUTOMOTIVE RADIATOR HOSE PIPE STRAIGHT TYPE CUSTOM BUILT

Radiator Straight Type in 05bar Working Pressure of SBR/NR rubber blend Reinforced with Multi-layer Textile Plies & Steel Wire Helix for Automotive Coolant Connection and vehicle engine straight connections under severe conditions, Suct Discharge Type hose pipe, as per IS2765 standards:

  • Custom built Sizes: 19 to 100mm ID ~4inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 20M (standard) or also 10,15M; (min. Coil): 5M
  • Cover: Corrugated wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +110deg.C

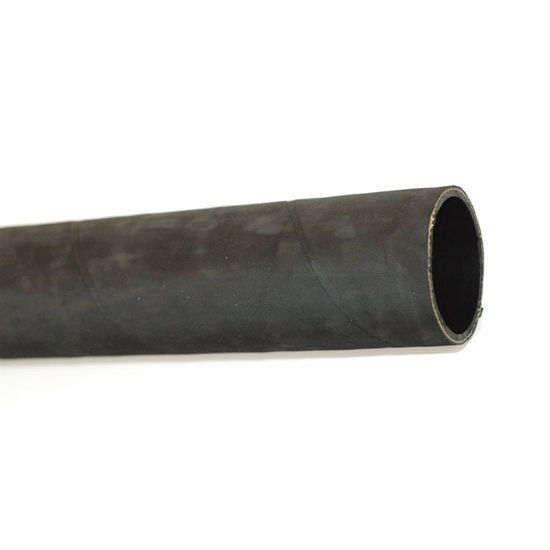

A short length of straight automotive radiator hose, cut square at both ends.

Section 02

RIGID MANDREL FLEXIBLE RUBBER HOSE TYPES COMPETENCE

Manufacturing competence of consistent dimensions HIC UNIVERSAL Rigid Mandrel Built Flexible Transfer Suction and Discharge Rubber Hose Without Soft Ends Large Diameter Bore Sizes up to 200mm NB.

A water delivery hose cut to show the textile plies between its lining and its cover.
7 products

DEWATERING SUCTION, LAY FLAT DISCHARGE HOSE MANDREL BUILT

Sewage Dewatering Suction in 10bar Working Pressure of SBR & EPDM rubber blend Reinforced with Helical Steel Wire Flexi Transfer Type, exceeds IS3549 standards:

Specification10 lines
  • Mandrel built Hose Sizes: 19 to 200mm ID ~8inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 40M (standard) or also 20M; (min. Coil): 10M
  • Cover: Wrap finish, non-corrugated without soft ends; Test Pressure:1.5times of wp.
  • Temp.: -30C to +80deg.C
  • End Fitting: Customized
  • Lay Flat Wastewater Discharge in 10bar Working Pressure of SBR rubber blend of Light Weight Reinforced with High Tensile Synthetic Plies & Flexi Transfer Type, as per HIC’s own standards:
  • Mandrel built Sizes: 38 to 200mm ID ~8inch NB; Safety Factor (burst P): 3:1
  • Roll Length of hose pipe: 40M (standard) or also 20M; (min. Coil): 10M
  • Cover: Wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +80deg.C; End-Fittings: Customized
A coil of layflat water discharge hose, flat as it is wound and round at the open end.

UHMWPE CORROSIVE CHEMICAL SUCTION, EPDM DISCHARGE FLEXI HOSE

UHMWPE Corrosive Chemical & Acid Suction in 16bar Working Pressure of blue EPDM rubber and an ultra-high-molecular-weight polyethylene UHMWPE non-contaminating transparent lining tube Reinforced with Helical Steel Wire, that handles up to 95% of the concentrated acids & chemicals used in refineries, chemical trucks and tankers, food industries, pharmaceutical factory, Flexi Transfer Type, as per HIC’s own standards:

Specification11 lines
  • Mandrel built Sizes: 19 to 150mm ID ~6inch NB; Safety Factor (burst P): 3:1
  • Roll Length of hose: 20M (standard); Vacuum: 0.9bar
  • Cover: Wrap finish, non-corrugated without soft ends; Test Pressure:1.5times of wp.
  • Temp.: -20C to +120deg.C; Vacuum: 0.9bar
  • End Fitting: Customized
  • EPDM Chemical Suction & Discharge in 10bar Working Pressure of EPDM rubber Reinforced with a Copper Wire for Electrical Continuity and Helical Steel Wire Flexi Transfer Type, exceeds IS7654 T2 standards:
  • Mandrel built Sizes: 19 to 150mm ID ~6inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 40M (standard) Also 20M; Vacuum: 0.9bar
  • Cover: Wrap finish, non-corrugated without soft ends; Test Pressure:1.5times of wp.
  • Temp.: -40C to +100deg.C
  • Fitting: Rubber Lined Flanges or without.

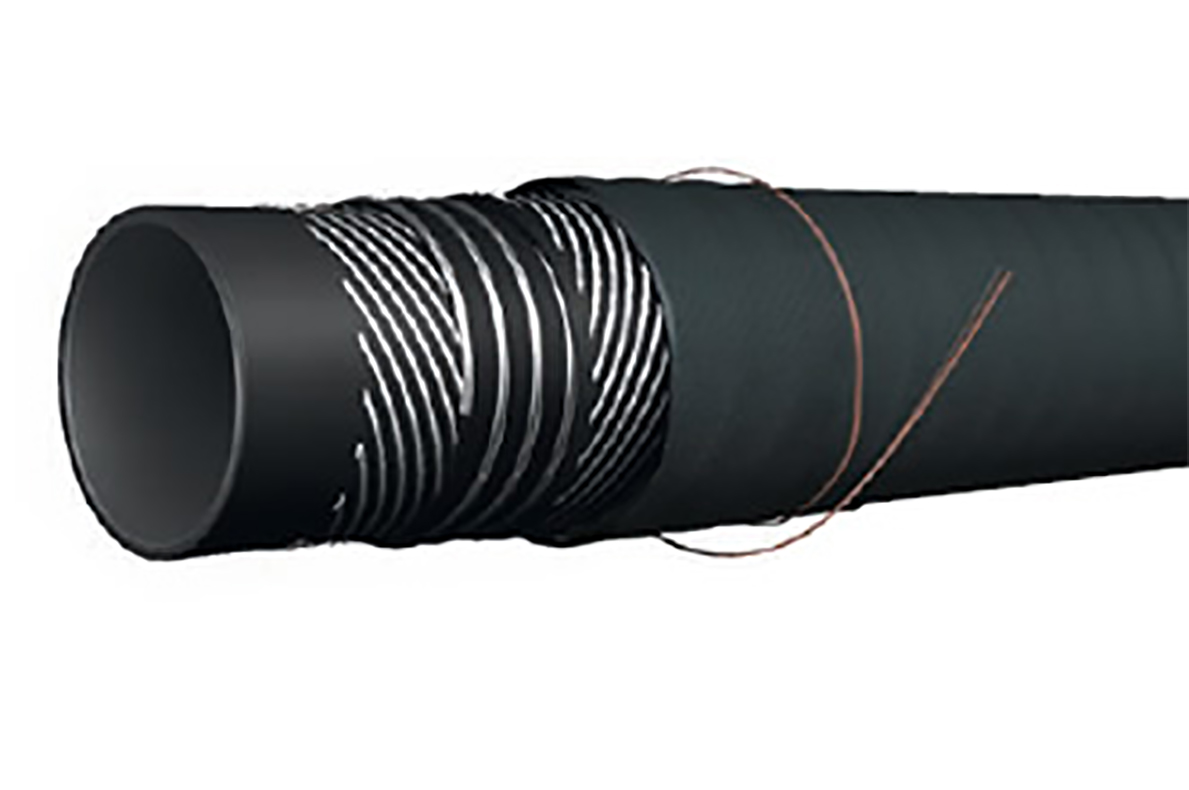

A chemical suction hose with its helical wire wound under the cover and a trace wire along the outside.
A chemical transfer delivery hose cut back in steps to show the wire braid reinforcement under the cover.

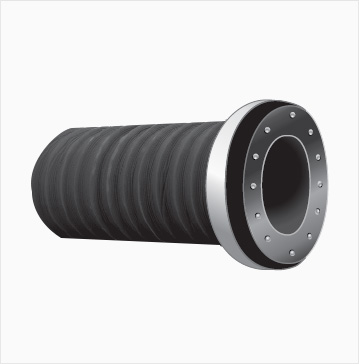

A phosphoric acid suction hose ending in a drilled steel flange.

MATERIAL HANDLING SUCTION, BULKER CEMENT UNLOADING FLEXI HOSE

Material Handling (Cement, Sand, Fly-Ash) Suction in 10bar Working Pressure of SBR & NR rubber blend Reinforced with a Copper Wire for Electrical Continuity and Helical Steel Wire Flexi Transfer Type, as per HIC’s own standards:

Specification10 lines
  • Mandrel built Sizes: 25 to 200mm ID ~8inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 40M (standard) Also 20M; Vacuum: 0.9bar
  • Cover: Wrap finish, non-corrugated without soft ends; Test Pressure:1.5times of wp.
  • Temp.: -20C to +75deg.C
  • Fittings: Customized
  • Bulker Cement Truck Hot Air High Temperature 180C Unloading in 10bar Working Pressure of EPDM rubber blend Reinforced with High Tensile Synthetic Plies & Flexi Transfer Type, as per HIC’s own standards:
  • Mandrel built Sizes: 25 to 100mm ID ~4inch NB; Safety Factor (burst P): 3:1
  • Roll Length of hose: 40M (standard) or also 20M; (min. Coil): 10M
  • Cover: Wrap finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +180deg.C; Hose Fittings: Customized

OIL SUCTION & DISCHARGE, POTABLE WATER FOOD GRADE FLEXI HOSE

Oil Suction & Discharge with 50% Max Aromatic Content in 10bar Working Pressure of NBR rubber & PVC blend Reinforced with a Copper Wire for Electrical Continuity and Helix Steel Wire Flexi Transfer Type, as per HIC’s own standards:

Specification11 lines
  • Mandrel built Sizes: 19 to 150mm ID ~6inch NB; Safety Factor (burst P): 3:1
  • Roll Length of hose: 40M (standard) Also 20M; Vacuum: 0.9bar
  • Cover: Wrap finish, non-corrugated without soft ends; Test Pressure:1.5times of wp.
  • Temp.: -20C to +80deg.C
  • End Connections: Flanges Built-in/ Loose/ Rotating or with Soft Ends enlarged
  • Food Grade Potable Water & Brewery Transfer in 10bar Working Pressure of Non-Toxic NR/SBR rubber Reinforced with High Tensile Synthetic Plies and Helix Steel Wire Flexi Transfer Type, exceeds IS5118 standards:
  • Mandrel built Sizes: 19 to 100mm ID ~4inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 40M (standard) Also 20M; Vacuum: 0.9bar
  • Cover: Wrap finish, non-corrugated without soft ends, White/Blue/Orange color
  • Test Pressure:1.5times of wp.; Temp.: -20C to +80deg.C
  • Fittings: Customized

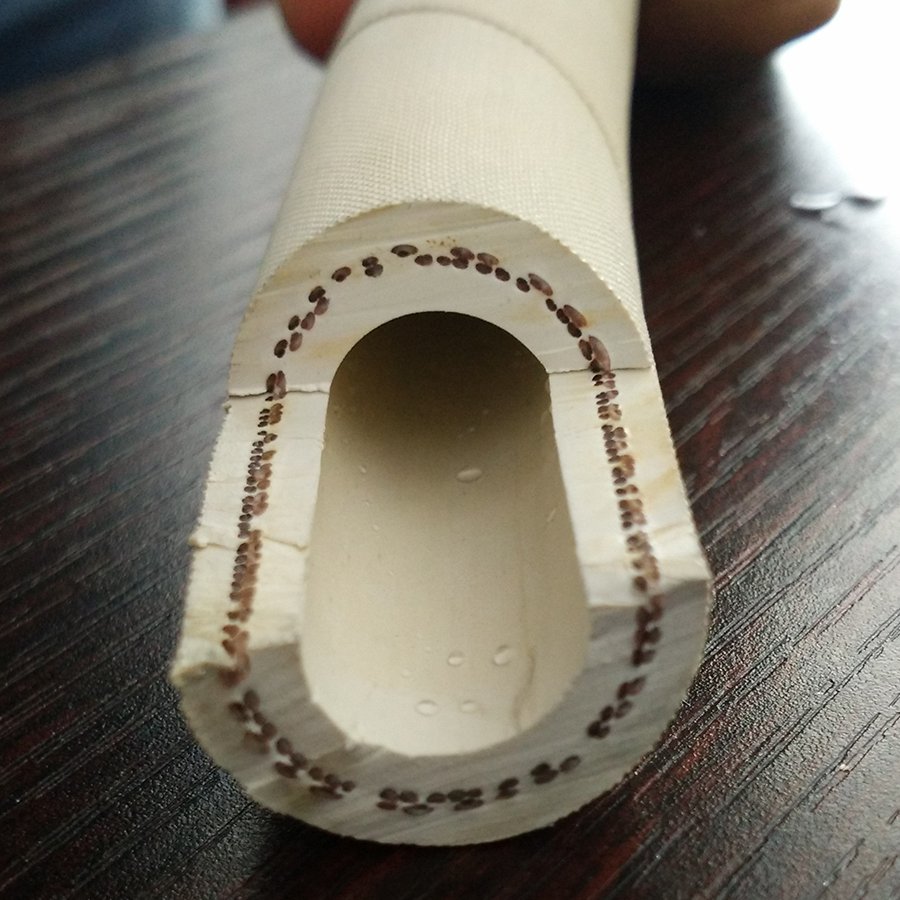

A cut end of food grade hose in white rubber, laid on a bench to show its bore and plies.

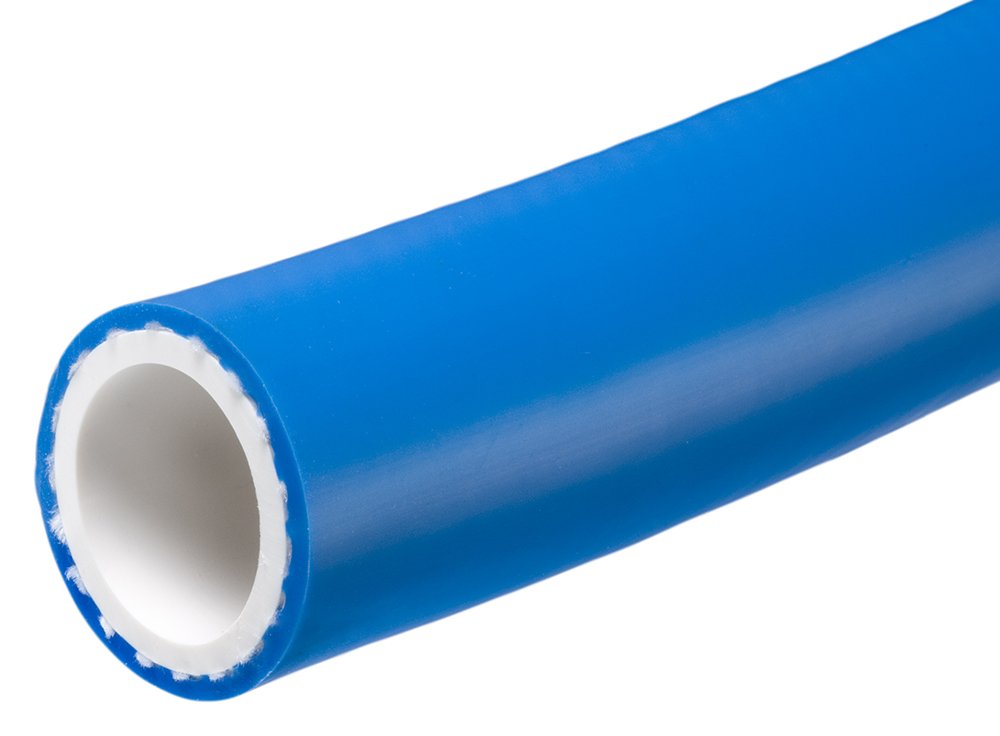

A blue covered potable water hose with a white food grade lining showing at the cut end.
A hot bitumen transfer hose, its ribbed cover bending to show how flexible it is.

FURNACE CARBON FREE, COMPRESSED AIR FLEXI HOSE PIPE

Furnace Cable Coolant Non-conductive Carbon Free in 14bar Working Pressure of Synthetic rubber blend Reinforced with High Tensile Synthetic Plies, except 12.5, 19,25mm ID sizes in High Tensile Fiber Yarn Braided, Low Leakage Current less than 15 Micro Amps at 5000V DC & Flexi Transfer Type, as per HIC’s own standards:

Specification10 lines
  • Mandrel built Sizes: 12.5 to 100mm ID ~4inch NB; Safety Factor (burst P): 4:1
  • Roll Length of hose pipe: 20M (standard) or also 40M; (min. Coil): 10M
  • Cover: Wrap finish, in Green/ Red outer color.
  • Heat Radiation Cover Protection EXTRA’S: Glass Fiber Temperature Resistant to 1200 degree C of molten metals Or Asbestos Resistant to Temp. up to 450 deg. C of hot metal splashes on exposed outer cover.
  • Test Pressure: 2 times of wp.; Temp.: -20C to +100deg.C
  • Compressed Air Pneumatic Tool High-Pressure in 20bar Working Pressure of Synthetic rubber blend Reinforced with High Tensile Synthetic Plies & Flexi Transfer Type, as per HIC’s own standards:
  • Mandrel built Sizes: 19 to 100mm ID ~4inch NB; Safety Factor (burst P): 3:1
  • Roll Length: 40M (standard) or also 20M; (min. Coil): 10M
  • Cover: Smooth Fabric Marked finish; Test Pressure:1.5times of wp.
  • Temp.: -30C to +70deg.C; Fittings: Customized

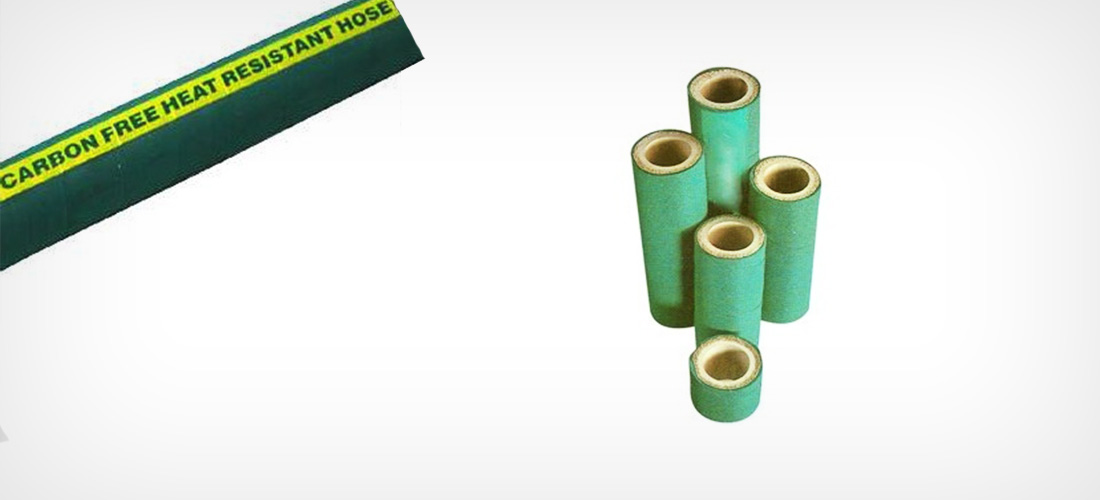

A carbon free heat resistant hose beside the green ceramic couplings it is fitted with.

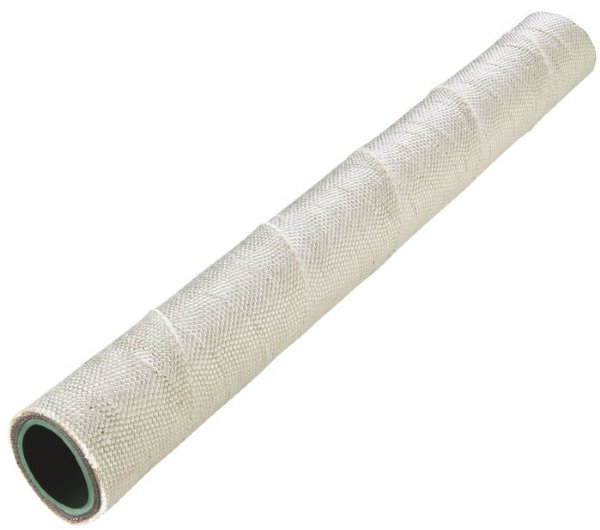

A non conductive hose in a woven fibreglass cover, pale against the dark rubber lining at its cut end.
Two non conductive furnace hoses crossing, their green covers printed Carbon Free Heat Resistant Hose.

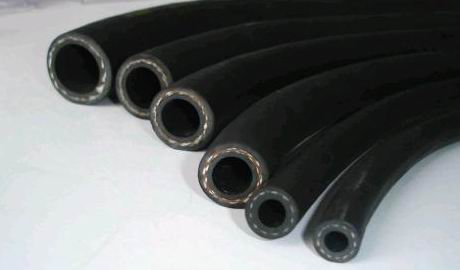

Five compressed air hoses of different bores laid side by side, each cut square at the end.

READY-MIX CONCRETE PUMP DISCHARGE FLEXIBLE HOSE

Concrete Pump End High Pressure Discharge in 85bar Working Pressure of NR/SBR reinforced flexible abrasion resistant rubber blend for Piling Foundation & Ready-Mix Concrete (RMC) Machine, Reinforced with Steel Wire Cord & Flexi Transfer Type, as per HIC’s own standards:

  • Sizes: 75mm, 100mm, 125mm ~5inch NB; Safety Factor (burst P): 2:1
  • Roll Length of hose: 4M, 5M, 6M; Vacuum (max): 0.8bar
  • Wall Thickness: 5.5mm; Bend Radius (mm): 270 (3” hose), 300 (4”), 360 (5”)
  • Cover: Wrapped finish; Test Pressure:1.5times of wp.
  • Temp.: -20C to +80deg.C; End Connections: Flange Customized

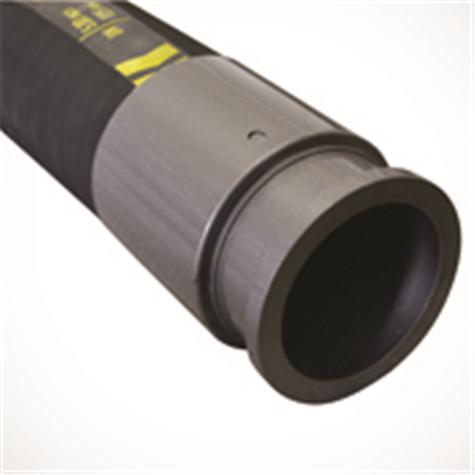

A concrete pump hose with a heavy steel end fitting swaged onto it.
A concrete pump hose with a steel elbow coupling at the end.

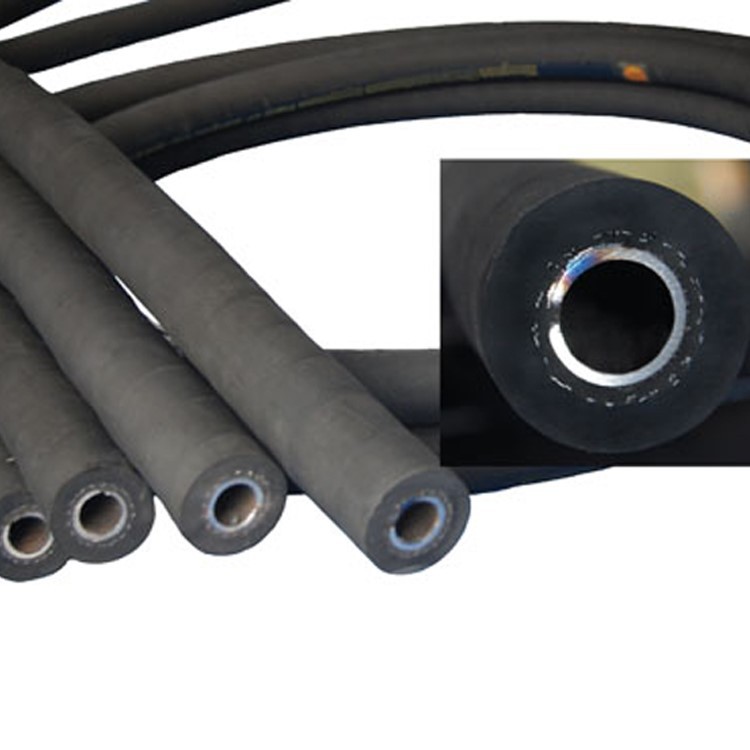

Concrete vibrator hoses of several bores, with one shown end on to reveal its spring lining.

DAIRY WASHDOWN FOOD GRADE, SAND BLASTING FLEXI HOSE PIPE

Dairy Steam Food Grade 150C Temp. in 05bar Working Pressure of EPDM rubber Reinforced with High Tensile Synthetic Plies, for Milk, Creamery Sterilize Equipment Hot Washdown & Cleaning, & Flexi Transfer Type, exceeds BS5122 standards:

Specification9 lines
  • Mandrel built Sizes: 19 to 75mm ID ~3inch NB; Roll Length: 20M (standard)
  • Safety Factor (burst P): 10:1 at +150C wp 5bar, 3:1 at +90C wp 15bar
  • Cover: Wrap finish in Off-White/ Blue color; Test Pressure: 5times of wp.
  • Temp.: -20C to +150deg.C; Fittings: Duo Check Quick Coupling
  • Sand Blasting with Copper Wire in 10bar Working Pressure of conductive NR/SBR rubber compound to ensure Static Electricity Dissipation for Foundry Waste & Ship Hulls Cleaning, Reinforced with High Tensile Synthetic Plies & Flexi Transfer Type, exceeds IS5894 T2, BS6417 standards:
  • Mandrel built Sizes: 12.5 to 100mm ID ~4inch NB; Safety Factor (burst P): 3:1
  • Roll Length of hose pipe: 40M (standard) or also 20M; (min. Coil): 10M
  • Cover: Smooth Fabric Marked finish; Test Pressure:1.5times of wp.
  • Temp.: -20C to +80deg.C; End Connections: Customized

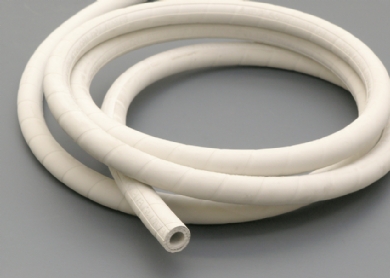

A coil of food grade steam hose in white rubber.
A hand holding a length of sandblast hose end on, showing the thick natural rubber lining inside the bore.

Section 03

BRAIDED DELIVERY HOSE PIPE TYPES MAKING PROFICIENCY

Making proficiency of continuous long length HIC UNIVERSAL Braided Rubber Hose Pipe produced with Wire Braiding up to 38mm Diam., in Dipped Yarn Braids/ Woven Textile Ply up to 100mm Inner Dia.

Industrial Delivery Rubber Hose Pipe manufactured types are Steam, Fire Water, Rock Drill, Pneumatic Tool, Water, Welding Gas.

Braided delivery hoses in blue, yellow, red and black, gathered with their cut ends towards the camera.
4 products

STEAM EPDM RUBBER, HIGH TEMPERATURE 210C WIRE BRAIDED HOSE

Steam EPDM 1 Wire Braided 190C Temperature in 10bar Working Pressure of EPDM rubber compound Single Braid of High Tensile Brass Coated Steel Wire for Chemical Plants, Shipyards steam cleaning & Braided Dlv. Type exceeds IS10655 T-2 standards:

Specification9 lines
  • Nominal Bore Sizes: 12.5 to 38mm ID ~1-1/2inch ID; Safety Factor (burst P): 10:1
  • Roll Length: 20M (standard); (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Temp.: -40C to +190deg.C; Fittings: Customized
  • Super Steam EPDM 2 Wire Braided 210C Temp. in 16bar Working Pressure of EPDM rubber compound Double Braids of High Tensile Brass Coated Steel Wire for Oil Refineries, Melting Adhesives & Braided Dlv. Type exceeds IS10655 T-3 standards:
  • Nominal Bore Sizes: 12.5 to 32mm ID ~1-1/4inch ID; Safety Factor (burst P): 10:1
  • Roll Length of hose pipe: 20M (standard); (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Temp.: -40C to +210deg.C; Fittings: Customized

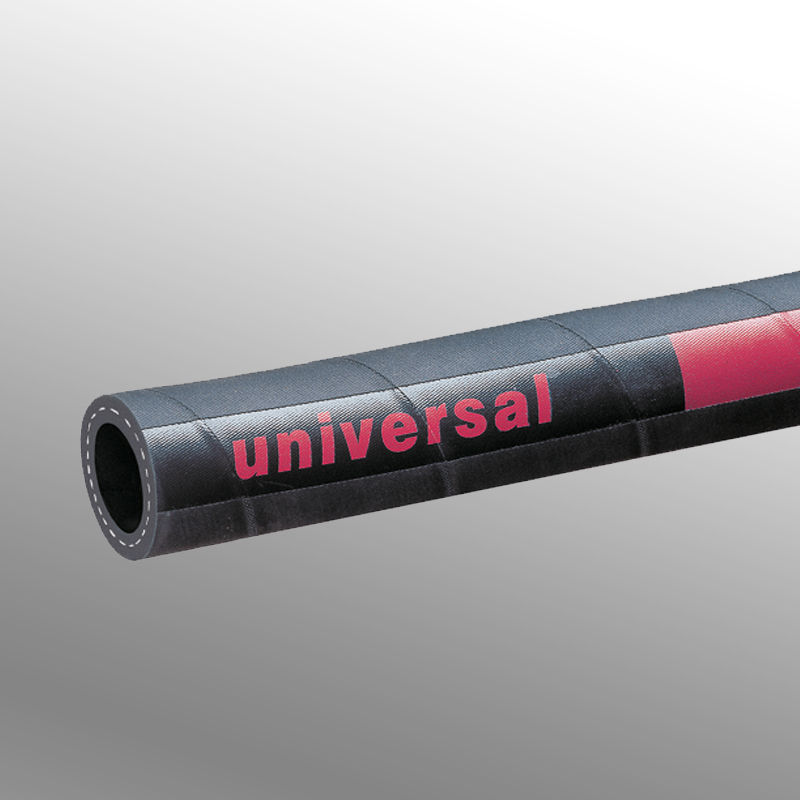

A hot water hose printed with the Universal brand name along its cover.

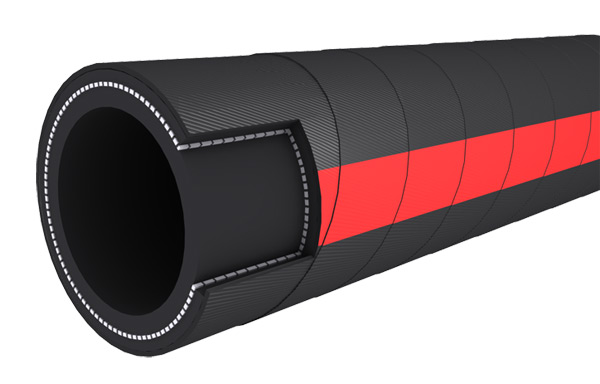

A low temperature steam hose with a red stripe along its ribbed black cover.

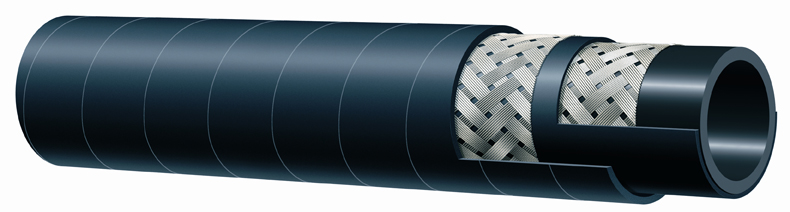

A steam hose cut back in steps to show the wire braid between its EPDM lining and cover.

FIRE WATER FOAM, FIREFIGHTING RRL BRAIDED DELIVERY RUBBER HOSE

Fire Water Foam in 17bar Working Pressure of SBR/ EPDM rubber blend Double Textile Nylon Braids for Fire-Engine to extinguish fire by delivering water and fire-retardant foam & Braided Dlv. Type, as per HIC’s own standards:

Specification9 lines
  • Nominal Bore Sizes: 25, 38mm ID ~1-1/2inch ID; Safety Factor (burst P): 3:1
  • Roll Length of hose pipe: 30M (standard); (min. Coil): 15M
  • Cover: Wrap finish R3 type; Test Pressure: 1.5times of wp.
  • Temp.: -20C to +80deg.C; Fittings: Customized
  • Fire RRL Type A, Type B in 14bar,18bar Working Pressure of flexible Circular woven jacket of blended Lightweight cotton & synthetic yarn Reinforced Rubber Lined of EPDM, Non-Percolating capable to withstand High Operating & Back Pressure of water delivery during Firefighting, for Highrise Buildings & Sailing Vessels & Braided Dlv. Type as per IS636 Type-A and Type-B standards:
  • Nominal Bore Sizes: 50 to 100mm ID ~4inch ID; Safety Factor (burst P): 2.3:1
  • Roll Length of hose: 30M standard; (min. Coil): 15M
  • Colors: Off-White, Blue, Red; Test Pressure: 1.4times of wp.
  • Temp.: -25C to +70deg.C
A coil of rubber lined fire hose in white canvas, one end opened out.

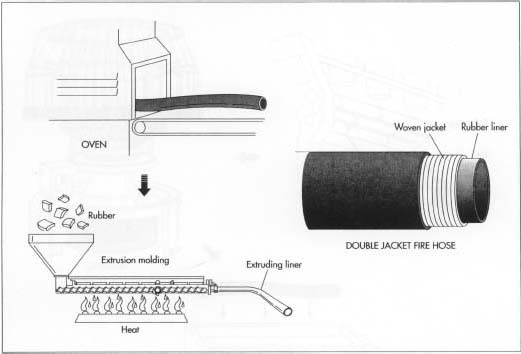

A diagram of how a double jacket fire hose is made, from extrusion and oven curing to the finished hose, labelled woven jacket and rubber liner.

MINING ROCK DRILL, PNEUMATIC TOOL AIR BRAIDED RUBBER HOSE

Mining Rock Drill Wire Braided in 35bar Working Pressure of Nitrile/NR rubber compound Single Braid of High Tensile Brass Coated Steel Wire for Quarry & Tunnel to supply compressed air to rock drilling equipment & Braided Dlv. Type exceeds IS446 T-3 standards:

Specification9 lines
  • Nominal Bore Sizes: 12.5 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length: Random up to 60M; (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Temp.: -30C to +80deg.C
  • Pneumatic Tool Air HD in 14bar Working Pressure of Nitrile/NR rubber compound Double High Tenacity Synthetic Textile Yarn Braids for Compressor & Construction Site Nail Guns air delivery to run power tools & Braided Dlv. Type exceeds IS446 T-2 standards:
  • Nominal Bore Sizes: 8 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length of hose pipe: Random up to 120M; (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Temp.: -25C to +70deg.C

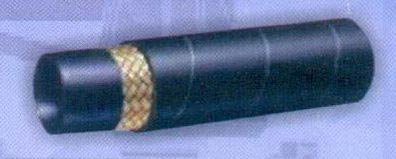

A rock drill hose cut back to show the textile braid under its cover.
A large bore pneumatic hose seen end on, its braid showing as a ring around the bore.

WATER, WELDING GAS CUTTING RUBBER BRAIDED INDUSTRIAL HOSE PIPE

Water General Purpose in 10bar Working Pressure of NR/SBR rubber blended Double High Tenacity Synthetic Textile Yarn Braids for Construction Site & Industrial Operation water delivery processes & Braided Dlv. Type exceeds IS444 T-2 standards:

Specification10 lines
  • Nominal Bore Sizes: 12.5 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length of hose pipe: Random up to 120M; (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Temp.: -25C to +70deg.C
  • Welding Gas Cutting in 18bar Working Pressure of NR/SBR rubber blended Single High Tenacity Synthetic Textile Yarn Braids for Industrial Fabrication Workshops to deliver Oxygen from cylinders, fuel gases like Acetylene to a torch to cut metals or heating, Propane delivery from a tank to different appliances & Braided Dlv. Type exceeds IS447, DIN8541 standards:
  • Nominal Bore Sizes: 6 to 12.5mm ID ~1/2inch ID; Safety Factor (burst P): 4:1
  • Roll Length: Random up to 120M; (min. Coil): 15M
  • Cover: Wrap finish; Test Pressure: 2times of wp.
  • Color: BLUE for Oxygen, RED for Acetylene, BLACK for Propane
  • Temp.: -25C to +70deg.C
A car wash hose cut back to show the textile braid wound under its green cover.
A cutaway drawing of twinned welding hose, the blue one labelled single braided, inner tube and outer cover, the red one labelled double braided with a middle cover.

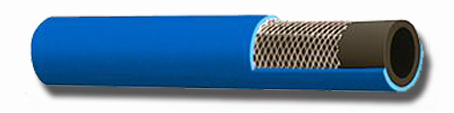

A blue oxygen welding hose cut back in steps to show its braid and inner tube.

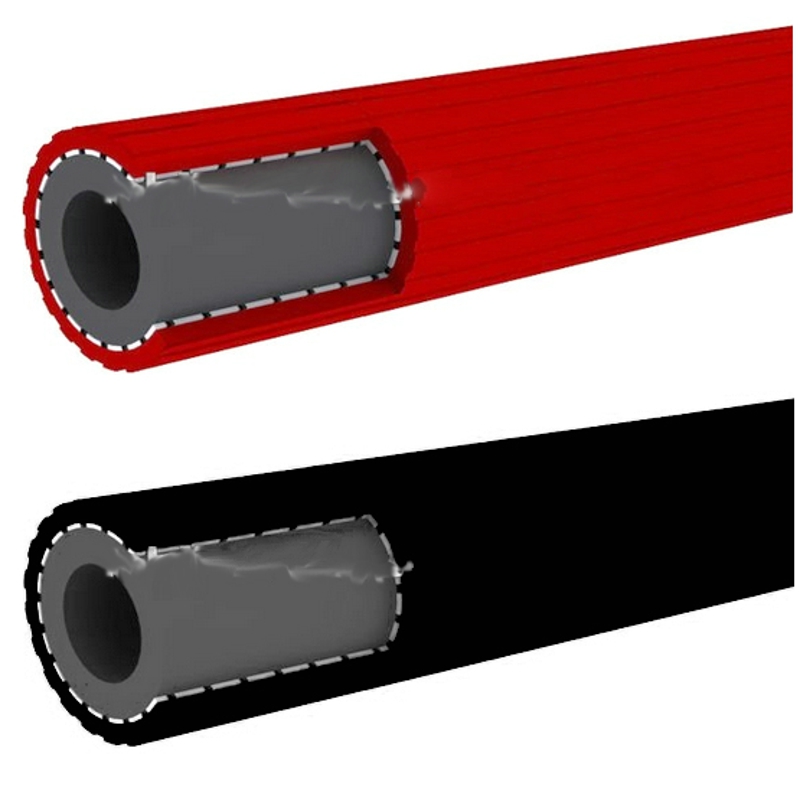

A red acetylene welding hose and a black one, each drawn in section to show the braid around the inner tube.

Section 04

HYDRAULIC WIRE REINFORCED HOSE ASSEMBLY PRODUCTION RANGE

Production range of High-Pressure Oil Resistant flexible HIC UNIVERSAL Hydraulic Hose of High Tensile Brass Coated Steel Wire Reinforced up to 50mm NB, Assembly crimped fittings.

High Pressure Hydraulic Rubber Hoses manufactured types are Water Jetting, 4SP/4SH, R2 AT, R1 AT.

2 products

WATER JETTING, 4SP EARTHMOVING HYDRAULIC HIGH PRESSURE HOSE

Water Jetting High Pressure in 1000bar Working Pressure of flexible Four high tensile steel wire spirals reinforced with synthetic rubber resistant to water-oil emulsions, for Ultra High-Pressure Water Jetting, Cleaning Equipment by Water Blasting & Hydraulic Wire Type as per ISO19385 standards:

Specification9 lines
  • Nominal Bore Sizes: 10 to 25mm ID ~1inch ID; Safety Factor (burst P): 2.5:1
  • Roll Length of hose pipe: 100M standard; (min. Coil): 15M
  • Test Pressure: 1.25times of wp.
  • Temp.: -40C to +90deg.C
  • 4SP/4SH High Pressure Multi Spiral in 250bar to 415bar Working Pressure of flexible Four high tensile steel wire spirals wrapped in alternating directions with synthetic rubber resistant to hydraulic oil & outer cover weather resistant, for Earthmoving Excavator Hydraulic System to Handle High-pressure Fluids, Offshore Oil and Gas Platforms & Hydraulic Wire Type as per EN856 standards:
  • Nominal Bore Sizes: 12.5 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length: 100M standard; (min. Coil): 15M
  • Test Pressure: 2times of wp.
  • Temp.: -40C to +120deg.C
Two water blast jetting hoses cut back in steps, the layers of wire spiral showing as gold bands.
A high pressure jetting hose cut back along its length so each wire spiral layer is visible in turn.

R2 CRANE, R1 HARVESTER HYDRAULIC HIGH PRESSURE RUBBER HOSE

R2 AT High Pressure in 80bar to 400bar Working Pressure of flexible Two braids of high tensile brass coated steel wire with synthetic rubber fuel oil resistant Lining tube & outer cover weather and abrasion resistant, for Construction Crane Hydraulic Booms & Steering System, Mining Drill Machinery & Hydraulic Wire Type as per SAE100 standards:

Specification9 lines
  • Nominal Bore Sizes: 6 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length of rubber hose: 100M standard; (min. Coil): 15M
  • Test Pressure: 2times of wp.
  • Temp.: -40C to +100deg.C
  • R1 AT High Pressure in 40bar to 225bar Working Pressure of flexible Single braid of high tensile brass coated steel wire with synthetic rubber fuel oil resistant Lining tube & outer cover weather and abrasion resistant, for Industrial Injection Molding Machinery, Agricultural Tractors and Harvester Header Control and Lifting Mechanism & Hydraulic Wire Type as per SAE100 standards:
  • Nominal Bore Sizes: 6 to 50mm ID ~2inch ID; Safety Factor (burst P): 4:1
  • Roll Length: 100M standard; (min. Coil): 15M
  • Test Pressure: 2times of wp.
  • Temp.: -40C to +100deg.C

Why HIC Universal Camlock Fittings?

  • Safe Transfer of Flammable Liquids & Dry Powders Camlock
  • High Pressure Water Fast Connections Cam Groove Fittings

Section 05

CAMLOCK COUPLING TYPES MANUFACTURING CAPACITY

Camlock Coupling Fitting Types are produced of Steel SS304, SS316, Carbon Steel WCB, Aluminum high pressure hose fittings as per MIL-C-27487 standards.

High-Pressure Cam Groove Quick Connectors manufactured types are Part A, E, F Adapter, Part B, D Coupler, Part C Coupler by Hose Tail (Shank), Part DC, DP Coupler.

A chart of camlock coupling types, each one photographed and labelled, from Type A through Type F and the dust cap and plug.
A drawing of a camlock coupling in three steps, labelled connection, assembly lock and disconnection, beside a table of its parts.
2 products

TYPES A, B, C, D, E, F CAMLOCK FITTING PRODUCED

Specification22 lines
  • Male Coupler x Female BSP Thread - Part A Camlock Adapter
  • Used generally with Type D coupler to make a set.
  • However, similar sizes of Part B, C and DC types may be fitted.
  • Female Coupler × Male BSP Thread - Part B Camlock Coupler
  • Used generally with Type F adapter to make a set.
  • However, similar size of Part A, E and DP may be fitted.
  • Female Coupler × Hose Shank - Part C Camlock Coupler by Hose Tail
  • Used generally with any Male camlock adaptor fitted to the female camlock end.
  • Female Coupler × Female BSP Thread - Part D Cam & Groove Couplers
  • Used generally with Type A adapters to make a set.
  • However, similar size of Part E, F and DP may be fitted.
  • Male Coupler × Hose Shank - Part E Cam and Groove Adapters
  • Used generally with Type C couplers to make a set.
  • However, similar sizes of Part B, D and DC may be fitted.
  • Male Coupler x Male BSP Threaded - Part F Camlock Adapter
  • Used generally with Type C, B, D & DC couplers to make a set.
  • Dust Cap, Female End Coupler – Part DC Camlock Couplers
  • Used generally with Type A, E & F adapters to seal the Male fitting ends.
  • Dust Plug, Male End Coupler – Part DP Camlock Coupler
  • Used generally with Type B, C & D couplers to insert into the Female fitting.
  • Sizes produced: 3/4” ~6inch BSP/NPT thread; Test Pressure: up to 35 bar
  • Rubber Seal and Spare: NBR oil resistant 100C Temp., EPDM pharma liquid chemicals resistant 150C Temp., VITON, FKM ultra heat resistant 300C, SILICONE heat resistant 230C.
Eight camlock fittings photographed together and labelled Type A, B, C, D, E and F with the dust cap and dust plug.

ASA, BS FLANGE FITTING & SS QUICK COUPLING SPECIALTY

Specification8 lines
  • Suction & Discharge Hose Fittings making specialty being MS steel Flanges either Built-in with welded nipples or crimped Loose as per ASA150 pressure Class, BS10 Table D or E, ANSI B16.5 ASA with Flange Nominal Bore (NB), Outside Diameter (OD) of the flange, Thickness, Bore Diameter, Number of Bolt Holes, Bolt Circle Diameter, and Bolt Hole Diameter as per international dimensions of flange chart.
  • Fixed or Floating flange types fitting produced. Nipples made in either Threaded or Plain (for Welding)/ Victaulic coupling/ Camlock type fitting.
  • Rubber Lined Flange and Nipple act as corrosion-resistant for smooth flow of concentrated or other hazardous smooth media flow, industrial hose end-fitting with CS Camlock Coupler, Adapter too for No Contamination application needs.
  • High Pressure Quick Release Coupling HIC’s specialty, Positive Connect Disconnect Water, Vacuum, Steam and Air QRC, Push Pull type with duo check valve for hydraulic use and single check QRC usage of pneumatic air quick disconnect coupling working pressure up to 350bar as per ISO7241.
  • Sizes: ¼” to 3 inch; Body material: stainless steel SS304, SS316, Brass, CS.
  • Seal: Buna-N Nitrile rubber, Silicone Pharma grade up to 200ºC temperature, Viton up to 250ºC high temperature resistance, PTFE Teflon.
  • End Connections: Coupler Female BSP/ NPT threads, QRC Adapter Male thread, Socket weld, hose thread, hose shank, flanged class BS or ASA or DIN.
  • SS316 Grade Camlock Quick Coupling for Marine, producing corrosion resistant grade 316 stainless steel of bar stock in BSP or NPT thread for leakproof fluid transfer.
Stainless steel corrugated flexible hoses in a braided sleeve, coiled together.
Two steel corrugated hose assemblies, one ending in a drilled flange and one in a threaded fitting.
A group of high pressure quick release couplings in steel and brass, in several sizes.
A push pull fast coupling in two parts, the socket beside the plug that enters it.

EASE in HANDLING MATERIAL, VACUUM, STEAM, CHEMICALS, WATER TRANSFER

Kink-proof Weather Resistant and Test Pressure Safe aspect advantage of HIC Rubber Hosepipe are proven for mining dewatering, drainage system, highway road building projects, backwash water discharge of pool, construction sites, cement factories fly ash discharge, workshops hot water cleaning, pneumatic robots air transfer, steel mills furnace cable coolant, industrial firefighting, refineries flammable substances, hazardous corrosive chemicals & acid transfer, dairy food steam cleaning process, quarry pneumatic drills rockdrill, surface treatment sand blasting machine, high-rise construction concrete flow at high pressure into foundations, oil & gas plant petroleum transfer, maritime industries ship bunkering, industrial waste management of dry or wet material handling abrasives like slurry, gravel, cement, gypsum, etc. hydraulic liquid and gas delivery reliable performance.

No Separation of Line Pressure and Test Pressure Safe aspect advantage of HIC Stainless Steel Camlock Coupling are proven for pump petroleum tanker fast filing & emptying, beverage industry viscous liquid pump disconnection, ships corrosive substances handling male adapter and a female coupler connecting set, etc. hydraulic quick connect disconnect application of joining hoses and pipes securely for leak-free reliable performance.

Download TDS, Technical Specifications

Get Quick Quote for OEM Pressure Hose and Quick Connector.

Rubber Hose RFQCamlock EnquiryQRC OfferShutoff Valve Inquiry
