True Performance Drive V-Belt, Flat Belting, Taper Bush Pulley

HIC International Co, India manufactures High Speed Torque Transmission Machinery Parts:

Catalogue DL

Listen to a short brief

Power V-Belts

Stretch-Free quality rubber Neoprene, EPDM resistant to Heat, Oil, Fire FRAS rated Antistatic & high tensile strength polyester cords combination in cross-section Classical, Wedge, Narrow, Raw Edge Cogged, Banded Multiple Ribs High-Horsepower, Double Hexagonal to transmit rotational force of industrial machinery and agricultural equipment’s.

Test Passed as per IS2494, IS14261, DIN7753, DIN7867 & BS3790.

Flat Transmission Belting

Energy-Efficient quality Rubberized Canvas of RMA rubber with high tensile strength hard Cotton Duck (Rubber-Cotton), Nylon Sandwich of elastic stretched nylon core with friction cover of rubber (Nylon-Rubber), SINGLE side chrome leather cover & nylon fabric (Leather-Nylon), DOUBLE side chrome leather covers & nylon core (Leather-Leather) to transmit rotational power and torque at high speeds over long distances of agricultural threshers, bus chassis frame balata packing strips, textile machinery, gangsaw machines transmission belts.

Test Passed as per IS1370, BS ISO22.

V Belt Pulley with Taper Bush

Quick-Fit quality graded Cast Iron CNC machined sheaves Dual Duty type multiple grooves and split conical Bushing with half-threaded holes to transmit rotational power from Driving motor shaft to the Driven fan, compressor or other machinery using Endless V-Belts.

Test Passed as per IS3142, IS15151, ISO4183, DIN2211

Produced & Exported under the brand name “HIC Universal”, an ISO 9001 certified Manufacturing company.

CREDENTIALS as to quality industries supplies & true performance, Click Menu Tab.

A nylon transmission belt running over the yellow pulleys of a machine on a factory floor.

TC, COC of V-BELT, DRIVE V-PULLEY, TRANSMISSION BELTING TESTING

Test Certificate and Material COC of Manufacturer, HIC make rubber v-belt, drive v-pulley, transmission belting in-house Lab Testing, TC forwarded along-with the supplies.

Also, on EXTRA cost, from an independently accredited India Test Facility, like DNV, RITES, SGS, PDIL or any Govt. approved laboratory or other Third-Party Inspection agencies.

CUSTOMERS of HIC MACHINERY PARTS for INDUSTRIAL DRIVE

HIC’s industrial machinery parts for power transmission drive are trusted by OEMs in ASIA of:

  • Power Transmission Machinery manufacturers,
  • Sugar Mills consultant,
  • Turnkey Cement Plant Consulting services,
  • Paper Making Machinery suppliers,
  • Woolen Mills Technology services,
  • Fertilizer Factory Consultancy companies,
  • Textile Carding Machinery Spare Parts supplier,
  • Industrial Centrifugal Blower makers and Importers in Indonesia, Thailand, Vietnam, Morocco, China, Kenya, Nigeria, Ethiopia, Mozambique, Sudan, Egypt, South Africa, Indiana USA, Argentina, Brazil, Germany, Australia, Russia
  • Direct Manufacturing Industries like textile mills, paper and pulp making, flour mills, tobacco manufacturing, agricultural combine harvester factory customers.

Section 01 of 4

PRODUCTION CAPABILITIES Of V-BELT TYPES

Manufacturing range types of HIC UNIVERSAL Rubber V-Belt Types as per IS2494, IS14261, DIN7753, DIN7867 & BS3790 standards production capabilities consist of:

Browse the range

Section 02 of 4

PRODUCTION CAPABILITIES Of TRANSMISSION BELT TYPES

Manufacturing range types of HIC UNIVERSAL Transmission Belt Types as per IS1370, BS ISO22 & BS 3790 standards production capabilities consist of:

2 products

Browse the range

Section 03 of 4

PRODUCTION CAPABILITIES Of TAPER BUSH PULLEY V GROOVE TYPES

Manufacturing range of HIC UNIVERSAL Taper Bush V Groove Pulley Types as per IS3142, IS15151, ISO4183, DIN2211 standards production capabilities consist of:

1 product

Browse the range

Section 04 of 4

PRODUCTION CAPABILITIES Of TIRE, PIN, GEAR, JAW TYPES COUPLING

Manufacturing range of HIC UNIVERSAL Flexible Shaft Coupling as per IS12405, 12427, BS4235, 3170, DIN7190, 6885, ISO4863, ISO286 standards production capabilities consist of:

Browse the range

Why HIC Universal Rubber V-Belts?

  • Superb Heat and Fatigue Resistant Classic, Wedge Sections
  • Higher Horsepower Rated Shock Loads Tolerant Narrow Banded V Belt
  • Zero Slippage Polyester or Aramid Cord Ribbed Poly-V Sizes
  • Antistatic Cogged, Wrapped Featuring Minimal Elongation

Section 01

PRODUCTION CAPABILITIES Of V-BELT TYPES

Manufacturing range types of HIC UNIVERSAL Rubber V-Belt Types as per IS2494, IS14261, DIN7753, DIN7867 & BS3790 standards production capabilities consist of:

  • Classical Sections Wrapped Type A/B/C/D/E, Ax, Bx, FHP, up to 675inch Li.
  • Wedge Metric Profile SPA/SPB/SPC/SPZ up to 15000mm Lp.
  • Endless Narrow 3V/5V up to 70inch Lp.
  • Poly-V Multi Ribbed PK series 5PK, 6PK,7PK,8PK, PL, PM; up to 2500mm L.
  • Banded Multiple type RA, RB, RC; R5V, R8V; 2~6 Bands; up to 8890mm Li.
  • Hexagonal Double BB/CC up to 162inch Li.
  • Harvester Combine Flat 19mm to 60mm Top Width; up to 2150mm L.
  • Variable Speed 36mm to 76mm Top Width; up to 105inch L.
  • V-belt making specialty includes Raw Edge Cogged in Ax, Bx, SPCx section for industrial fans, PK Multi-rib for automotive air conditioning compressors drive.
A cutaway of a multi rib poly belt, its ribbed underside and cord layers numbered one to four.
A cutaway of a cogged metric power belt, the notches moulded into its underside and its layers numbered.
A cutaway of a raw edge cogged V belt, its five layers numbered from the top cover down to the notched base.
A cutaway of a banded V belt, three belts joined under one top band, with the layers numbered.
A cutaway of a wide variable speed belt, its three layers numbered.
A cutaway of a narrow section V belt, its four layers numbered.
A cutaway of a wedge V belt, its deep narrow section and layers numbered.
A cutaway of a double sided belt, wedge shaped on both faces for serpentine drives, with its layers numbered.
A cutaway of a classical section V belt, its wrapped cover and cord layers numbered.
A cutaway of a fractional horsepower V belt, beside a note that a size such as 3L 150 means an outside length of fifteen inches multiplied by ten.
A V ribbed micro belt seen end on, the fine ribs running the length of its underside.
A banded V belt drawn in section and labelled joint band construction and polyester cords.
Two cogged wedge V belts of fire resistant antistatic quality, lying one inside the other.
A poly V belt bent to show the ribs running along its inner face.

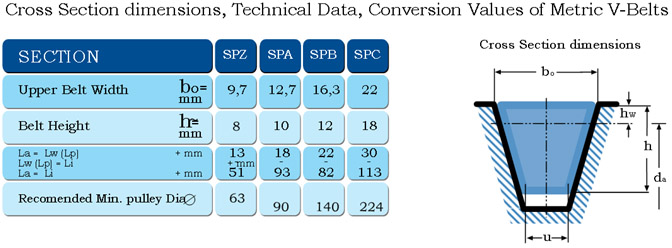

A table of metric V belt cross sections giving upper belt width, belt height and recommended minimum pulley diameter for the SPZ, SPA, SPB and SPC sections, beside a drawing of the section it measures.

Why HIC Universal Transmission Rubber Belts?

  • Energy Efficient Nylon Core Leather Fabric LF, LL, TA, TFO
  • High Breaking Strength Cotton Duck Plies 37oz., 34oz, 31oz
  • High Friction Surface Rubber Flat Belting XRS, AR

Section 02

PRODUCTION CAPABILITIES Of TRANSMISSION BELT TYPES

Manufacturing range types of HIC UNIVERSAL Transmission Belt Types as per IS1370, BS ISO22 & BS 3790 standards production capabilities consist of:

Flat Type Transmission Rubber Belting in High Breaking Strength Hard Cotton Duck Plies 37oz., 34oz, 31oz. impregnated with rubber compound, quality Friction Surface Rubber as per IS1370, BS ISO22 to transmit power over long distances, large shaft separations, high-speed uniform power delivery industrial machinery parts for irrigation systems & wildlife habitats.

Also, such belt is strong to use as Balata Packing for bus body building to avoid the inter friction between the metallic surfaces between the bus-body metal superstructure and the chassis & coach fabrication owing to robust construction of rubber friction surface on both sides of high tensile strength cotton canvas.

A cut sheet of rubber transmission belting, its yellow cotton duck plies showing at the edge.
2 products

SIZES, THICKNESS, LENGTH Of RUBBER-COTTON FLAT BELTING PRODUCED

Specification8 lines
  • Width Sizes: 25 to 1050mm~42inch cut to size;
  • Ply, Layers: 3 to 12
  • Thickness: 3.90mm(3ply), 5.0mm(4ply), 6.5mm(5ply), 7.5mm(6ply), 9.6mm(8ply) up to 15.5 MM
  • Canvas Cotton Duck, Tensile Strength Per Ply N/mm (Warp):
  • 37oz (TS:77), 34oz (TS:68.7), 31oz (TS:61.3), 28oz (TS:52)
  • Color: Grey/ TBS, with blue or red sides
  • Length: Long Open Ends, 110M~125M Rolls
  • Edges: Cut, standard. Round edge built upon bulk orders
Lengths of round edge flat transmission belting laid side by side.
A roll of tangential belting of the TA series, wound on itself.

SIZES Of LEATHER-NYLON, RUBBER-NYLON FLAT BELTS PRODUCED

Specification10 lines
  • Nylon Leather Sandwich Flat Belts type specialty includes Energy Efficient Nylon Core, Leather, Fabric types of LL, LF, TA, TFO, XRS=AR as per BS 3790, low bending cross-section and minimal slippage to drive spinning & carding machines, TFO textile twister belt for break-free power transmission.
  • Width Sizes: 10 to 300mm~12inch
  • Thickness: 1.25 to 8mm
  • Rubber-Nylon Surface Coating Type: TA, TFO, FR/ S
  • Leather-Rubber Surface Coating Type: LF/ LT
  • Leather-Leather Surface Coating Type: LL
  • Fabric-Fabric Surface Coating Type: FF
  • Rubber-Rubber Surface Coating Type: XRS=AR
  • Length: Long Open Ends, 50M max Or Endless to size.
  • Color: Green, Yellow, Blue

Why HIC Universal Drive Pulley Sheaves?

  • V Grooves CNC Machined Angle and Dimensions Drive Pulley
  • Fixing Ease of Quick Fit Taper Bush System Weld-on Hub
  • Minimal Vibration Timing Belt Precision Rotation Sheaves
  • Low Heat Build-up Enhances Vee and Timing Belts Life

Section 03

PRODUCTION CAPABILITIES Of TAPER BUSH PULLEY V GROOVE TYPES

Manufacturing range of HIC UNIVERSAL Taper Bush V Groove Pulley Types as per IS3142, IS15151, ISO4183, DIN2211 standards production capabilities consist of:

  • Graded CI, Solid, Aluminum to drive motor & driven fan Single/Dual Duty, Weld on Hubs (TLB) and Timing Belt Driver Toothed Belt Pulleys:
  • Pitch or Outer Diameter of Pulley Sheave (PCD/OD): 80 to 1250mm
  • V-Belt Section to Drive: SPA, SPB, SPC, SPZ, A, B, C, D, E,3V,5V,8V, BB
  • Grooves Number: 1 to 12
  • Taper Bush Size: WH1008 (25mm Max. Bore) to WH5050 (70mm Max. Bore)
  • Bore Size: Pilot, Finished (12 mm to 200 mm)
  • Balancing: Static (as standard), Dynamic (Recommended for >3000 rpm drive)
  • Pulley’s CNC-machined specialty includes Dual Duty Taper Lock Bush System, Key waying & Boring as per Drawings.
  • Also, Weld Hub with Taper Lock Bush to fasten component to shaft, avoiding mounting difficulty of industrial machinery.
Two grooved V pulleys, each fitted with a blue taper bush in its bore.
A dynamic balancing machine in the works, with its control panel beside the spindle a pulley is mounted on.
1 product

Efficiently Transmit Power to Farm Equipment and Industrial Machinery

High Wear Resistant and Minimal Stretch aspect advantage of HIC V Belts are proven for sugar & milk food Equipment, industrial centrifugal pump drive, mining machinery run FRAS quality, fan & blower Motor rotation, rice & wheat combine harvesters’ machine, farm equipment, etc. in transmitting power efficiently for long life reliable performance.

Dynamically Balanced and Proper Angle Grooved advantages of HIC V Groove Pulleys are proven for cement & fertilizer machinery motors run, air compressor, etc. high rpm industrial fan drive applications for long life satisfactory performance.

Motor Shaft Torque Transfer Flexible Coupling Types Making Specialty

Flexible Coupling types making to drive industrial pump shaft & motor power transmission include:

  • Superb Misalignment Run Torsional Elastic Tyre, Jaw Spider, Spacer, Cushion
  • Zero Backlash Shock Absorbing Pin Bush
  • Angular-parallel Misalignments & End-Float of Shafts Brake Drum Crane Couplings
  • Exceptional Shaft Misalignment & Large Bore Capacity Curved Tooth Gear Full-Flex, Half Rigid couplings that are Break-free motor shaft torque transfer.
  • Taper Bush system or without, bored to size.

Section 04

PRODUCTION CAPABILITIES Of TIRE, PIN, GEAR, JAW TYPES COUPLING

Manufacturing range of HIC UNIVERSAL Flexible Shaft Coupling as per IS12405, 12427, BS4235, 3170, DIN7190, 6885, ISO4863, ISO286 standards production capabilities consist of:

  • Tire Coupling F, TC, PH Types
  • F-series multidirectional Sizes: 40 to 200.
  • Bore handling max.: 190mm
  • Spare Tire produced: Tire standard, Also, FRAS quality rubber tyre.
  • TC-series conventional Sizes: 006 to 024.
  • OD: up to 530mm
  • Bore handling max.: 170mm
  • Spare produced: Rubber Tire.
  • PH-series new generation Sizes: 96 to 450.
  • Bore handling max.: 175mm
  • Spare produced: Tire standard, Also, FRAS quality rubber tyre.
  • Pin Bush Coupling Type
  • Pin and bush anti-backlash Sizes: 1B to 11B.
  • OD: up to 530mm
  • Bore handling max.: 190mm
  • Spare produced: Pin, Bush Set
  • Flexible and Rigid Gear Coupling Types
  • Full Gear full flexible Sizes: 101 to 112.
  • OD: up to 570mm
  • Bore handling max.: 240mm
  • Half Gear half rigid Sizes: 101 to 110.
  • OD: up to 530mm
  • Bore handling max.: 190mm
  • Spacer, Snap Wrap, Cushion, Jaw Spider Coupling Types
  • RRS Type spacer Sizes: 095 to 226.
  • Spacer-Length: 90, 100, 140mm
  • Bore handling max.: 70mm
  • RRL Type spacer Sizes: 095 to 225.
  • Spacer-Length: 90, 100, 140mm
  • Bore handling max.: 70mm
  • SW Type snap wrap Sizes: 095 to 225.
  • OD: up to 323mm
  • Bore handling max.: 80mm
  • Spare produced: Spider.
  • L Type jaw spider Sizes: 050 to 280.
  • OD: up to 192mm
  • Bore handling max.: 75mm
  • Spare produced: Spider.
  • C-series cushion Sizes: 226 to 2955.
  • Bore handling max.: 80mm
  • HRC-series cushion Sizes: 090 to 280.
  • Bore handling max.: 115mm
  • Spare produced: Element.
  • Download TDS, Technical Specifications
A flexible tyre coupling shown in parts: two hubs and the rubber tyre element that joins them.
A machined steel RRL spacer coupling, its two halves bolted either side of a spacer.
A steel gear coupling cut away, showing the internal teeth that mesh each hub to its outer sleeve.
An assembled snap wrap coupling, with the split flexible element that wraps between its two hubs lying beside it.
